Quick Highlights
- 4 interchangeable handles covering body, arms, and face/eye treatment areas
- Vacuum negative pressure + bipolar RF + roller massage + 40KHz cavitation + dual-wavelength laser (650nm & 940nm)
- 12.1″ main touchscreen console plus a 2.8″ touchscreen on every handle
- Adjustable vacuum (Level 1–7, up to 100Kpa) and roller speed (Level 15–36)
- RF energy output 5–35 J/cm², laser output 0–4W

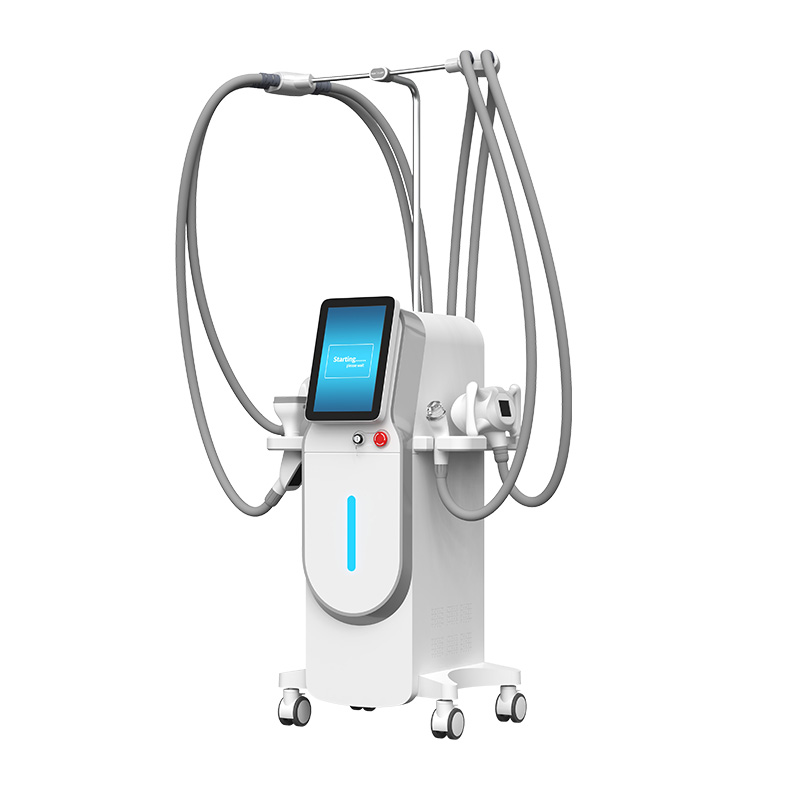

- Mobile trolley design with castors for easy repositioning between treatment rooms
5 technologies, 4 handles, 1 console — factory-direct body contouring machine
Overview
The MX-V687 is a multi-handle body contouring platform built around five combined technologies: vacuum negative pressure, bipolar RF, mechanical roller massage, 40KHz cavitation, and infrared/red laser. The system pairs a vacuum lift with RF heating and mechanical rolling to work on connective tissue at a 5–15mm depth, while a dedicated cavitation handle and two facial/eye handles extend the machine’s use from body contouring into facial lifting and eye-area treatment. Each of the four handles carries its own 2.8″ touchscreen for on-the-fly parameter adjustment, alongside the unit’s main 12.1″ console.
Ideal For
Medical spas, slimming and body-contouring clinics, and aesthetic centers looking to offer body shaping, cellulite reduction, skin tightening, and facial lifting from a single mobile platform.
How It Works
Vacuum Roller RF (Big Handle, 40mm×65mm) — Combines vacuum lift, 180° mechanical roller rotation, and RF energy with a 650nm laser to stretch connective tissue and heat the treatment area — manufacturer thermal imaging shows the treatment zone reaching 43.5°C after 30 seconds of use. Used on the abdomen, buttocks, waist, thighs, and back.
Vacuum RF (Small Handle, 30mm×45mm) — The same vacuum + RF + 650nm laser combination in a smaller head sized for arms, calves, and back.
40KHz Cavitation Vela Vacuum Handle — A dual-handgrip head combining vacuum suction with 40KHz cavitation over a 100mm×135mm treatment area, for fat melting and body shaping on the waist, abdomen, and back.
Vacuum RF Laser Eye & Face Handle — A precision handle with three interchangeable tips — Face (25×32mm), Eyes (16×20mm), and Neck (13×20mm) — delivering vacuum-assisted bipolar RF with a 940nm red laser. Heating reduces skin impedance so RF energy penetrates deeper into connective tissue while increasing intracellular oxygen, supporting wrinkle reduction and skin firming around the eyes, face, and neck.
Across all handles, RF frequency is selectable at 1MHz, 5MHz, or 8MHz to target different tissue depths, and vacuum pressure is adjustable from Level 1 to 7 (max 100Kpa) via a PID-controlled algorithm for a more consistent, hand-massage-like feel.
4 handles, 1 console — swap treatments without switching machines
Use Cases
- Body contouring and cellulite reduction on the abdomen, back, thighs, and buttocks
- Arm and calf toning with the small vacuum RF handle
- Localized fat reduction via 40KHz vacuum cavitation
- Facial and neck skin tightening and lifting
- Under-eye wrinkle and puffiness treatment with the dedicated eye tip
- Stretch mark improvement and muscle/joint relaxation, per manufacturer’s stated functions
Skin tightening benefits
Body contouring device
Face body treatment
Skin tightening functions
Key Features & Benefits
- Four dedicated handles — cover full-body and facial treatment needs from one console.
- Adjustable vacuum, RF, roller speed, and laser output — let practitioners tailor each session.
- 2.8″ touchscreens on every handle — in-treatment adjustments without returning to the main console.
- Mobile trolley base with castors — flexible placement in the treatment room.
- New-upgrade HD LED touch displays — a clearer operating interface.
Vela vacuum handpiece
Arm thigh treatment
40mm treatment head
Dual cavitation interface
Body shaping interface
4-in-1 device components
4-in-1 treatment handles
4-in-1 body contouring
Eye neck handpiece
Cellulite treatment handle
Vacuum roller laser
Treatment control screen
Facial RF handpiece
In the Treatment Room
Manufacturer photos show the system in use on the back and shoulders with the big vacuum roller RF handle, on the face and eye area with the vacuum RF laser handle, and on the abdomen with the cavitation handle — supporting body and facial treatment sessions on a standard treatment table.
Real clinic session — treatment zone reaches 43.5°C in 30 seconds
Why OJAN Beauty
OJAN Beauty supplies the MX-V687 factory-direct with OEM/private-label options, full manufacturer documentation, and after-sales support for clinics and distributors building out a body-contouring service menu.
Technical Specifications
| Spec | Value |
| Voltage | 220V/110V, 50Hz–60Hz |
| Power | ≤400W |
| Main Screen | 12.1″ touchscreen |
| Handle Screen | 2.8″ touchscreen (HD upgrade) |
| Vacuum | Up to 100Kpa, Level 1–7 (PID-controlled) |
| Cavitation | 40KHz |
| RF Energy | 5–35 J/cm² |
| RF Frequency | 1MHz / 5MHz / 8MHz selectable |
| Roller Speed | Level 15–36, 180° mechanical rotation, 4 modes |
| Laser Energy | 0–4W |
| Laser Wavelength | 650nm (body handles), 940nm (face/eye handle) |
| Big Handle Treatment Area | 40mm × 65mm |
| Small Handle Treatment Area | 30mm × 45mm |
| Cavitation Handle Treatment Area | 100mm × 135mm |
| Face/Eye Tip Sizes | Face 25×32mm / Eyes 16×20mm / Neck 13×20mm |
| Heating Performance | Up to 43.5°C at treatment site after 30 seconds (manufacturer thermal test) |
| Package Size | 113cm × 62cm × 60cm |
Availability & Ordering
The MX-V687 is available factory-direct through OJAN Beauty with OEM/private-label customization. Contact OJAN Beauty for pricing, lead times, and sample availability.
